CRANE CAMERA SYSTEMS

---

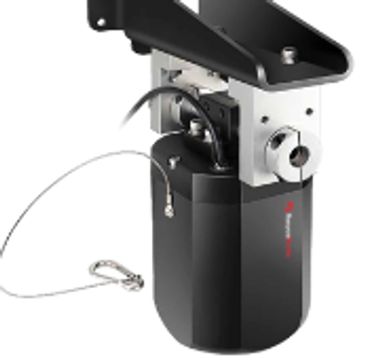

The MCDE5200 is a digital motor zoom camera

specifically designed for cranes for hook and load

monitoring. Advanced video module technology

delivers sharp, high-contrast images and allows

36x optical zoom and 16x digital zoom. Equipped with

an Ethernet interface, the MCDE5200 is suitable for use

in IEEE 802.3 (LAN) networks. The Ethernet interface

guarantees fast, simple and efficient control.

Features:

Configurable up to Full HD resolution (1920x 1080)

HDR sensor (high dynamic range)

Digital image/video transmission (up to 60 fps)

36 times optical zoom (and optional

16 times digital zoom)

Screen heater

Video output H.264 | MJPEG

Configurable video resolution,

compression rate and frame rate

Voltage supply via PoE

Software updates make the unit future proof

Quality „Made in Germany“

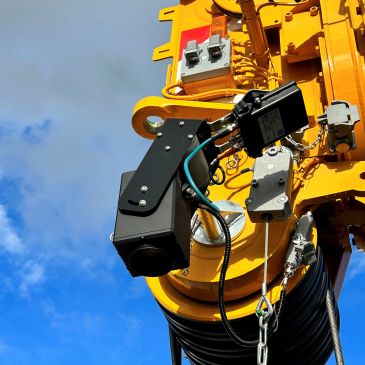

The Motec MWS Hook Block Camera System gives crane operators a clear, direct view of the hook block and load, helping improve visibility, lift control and overall site safety. Designed for demanding crane and lifting environments, the wireless camera system provides real-time visual support where the operator’s line of sight may be restricted, helping reduce blind lifts and improve load positioning. Ideal for tower cranes, mobile cranes and heavy lifting applications, the MWS is a rugged, reliable solution for contractors looking to improve safety and productivity on every lift. Crane Safety Products supplies, supports and hires Motec MWS Hook Block Camera systems throughout Australia.

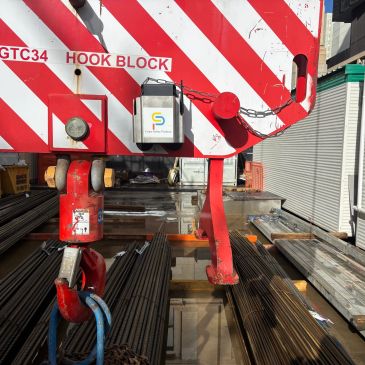

The load-view crane system is engineered to provide a definitive bird's-eye view of the entire nook block and load zone. By delivering a high-definition, wireless visual feed directly to the operator's cabin, this system effectively eliminates blind spots and provides total situational awareness.

ALGORITHM SUPPORT

1. Pedestrian detection algorithm, the algorithm needs the user to provide the relevant data set and target height angle information, otherwise the false detection rate will be high. The feature is enabled by default.
2. Automatic target tracking, which requires users to provide relevant data sets and information of tracking targets, this function is turned off by default.

MANUAL ZOOM CONTROL/FOCUS/DIGITAL

MAGNIFICATION

1. Control image magnification and reduction, focus and digital magnification size through corresponding function buttons on the monitor.
2. Control image magnification and reduction by stepping foot switch.
3. Control image zoom in and zoom out, focus and digital zoom size through the web end.
