TOWER CRANE

---

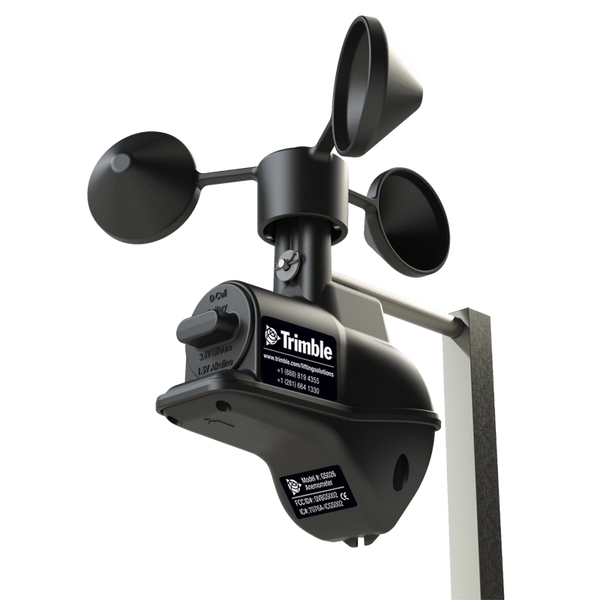

The Trimble GS026 Wind Speed sensor introduces a user-focused and cost-effective design for applications requiring a wireless wind speed unit.  Whether the application is residential, commercial, marine or heavy industrial, the GS026 offers the best value for the money based on features, functionality and radio performance.  Designed to be paired with the Trimble GS320 Stand Alone Display  for wind speed only application, or with the Trimble GS550 RCI as part of a complete crane system.  Users can expect up to 3 years of battery life under normal operation. If wind speed was monitored continuously 24 hours a day / 7 days a week, users could expect 20 months of battery life from one “D” cell lithium battery. The wind speed sensing element has no moving parts. The wind cup head assembly has 2 embedded magnets that pass by a reed switch in the wind speed body as the wind speed head assembly turns, producing an accurate wind value. The GS026 Wind Speed Sensor pivots on its steel mounting bracket, useful in applications where the structure it is mounted on moves up and down, such as with cranes or other lifting equipment. This keeps the wind cups perpendicular to the wind, the ideal angle to accurately measure the wind speed.

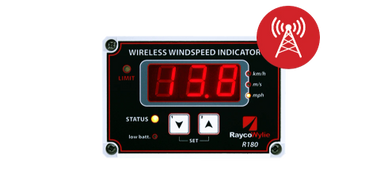

 The R180 is the cost effective, easy to install and simple to use wireless wind speed indicator.
With an inbuilt relay output to trigger an external alarm, internal audible and visual operator warnings, clear LCD display, low battery warning and the ability to display the speed in various units of measurement. The RaycoWylie R180 is the answer to your wind speed indication needs.

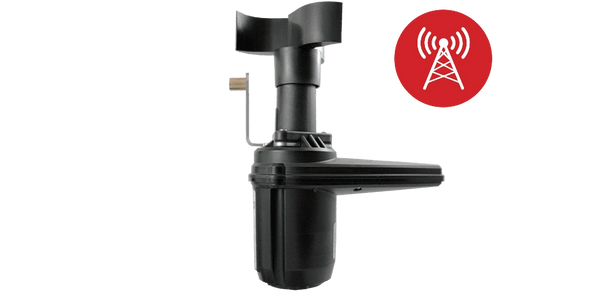

The system includes an externally powered in-cab display and a low power consumption wind speed sensor providing exceptional battery life in excess of 12 months. The wind speed sensor incorporates a pivot design to facilitate mounting to moving booms and ensures a constant upright position.

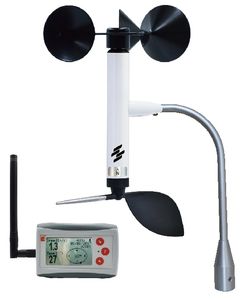

 WL-11 Wind Speed Data Logger is designed to provide an affordable and easy-to-use solution to wind site evaluation and monitoring wind generator performance in real time. It records wind speed, gust, and direction, time and date, temperature, and other important wind parameters. The wireless transmission ranges up to 250 meters or 1200 meters with optional antenna.

  WR-3 applies state-of-art 433/868/900 MHz radio frequency wireless technology to ensures better performance for barrier penetration and achieving long range transmission. The ultra-long 400 meter transmission distance makes WR-3 a perfect gadget to help users monitor wind speed on crane/lift/towers and prevent accidents from high wind risks.

 The i4000 wireless system boasts a dipole aerial for the display/controller for increased signal strength and range, 3.5” color screen, constant battery monitoring of all wireless sensors adjustable limits and even the possibility to combine wireless and wired sensors. The i4000 wireless is a fully versatile system which can be supplemented with new sensors as the system grows with your requirements.

  The R180 is the cost effective, easy to install and simple to use wireless wind speed indicator. With an inbuilt relay output to trigger an external alarm, internal audible and visual operator warnings, clear LCD display, low battery warning and the ability to display the speed in various units of measurement. The RaycoWylie R180 is the answer to your wind speed indication needs.

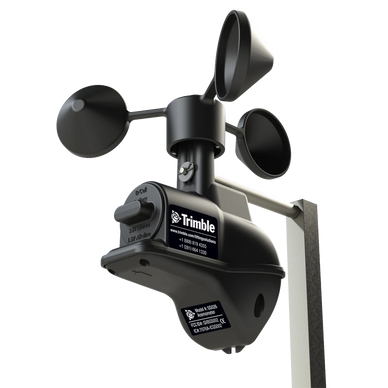

 The Trimble GS026 Wind Speed sensor introduces a user-focused and cost-effective design for applications requiring a wireless wind speed unit.  Whether the application is residential, commercial, marine or heavy industrial, the GS026 offers the best value for the money based on features, functionality and radio performance.  Designed to be paired with the Trimble GS320 Stand Alone Display  for wind speed only application, or with the Trimble GS550 RCI as part of a complete crane system.  Users can expect up to 3 years of battery life under normal operation. If wind speed was monitored continuously 24 hours a day / 7 days a week, users could expect 20 months of battery life from one “D” cell lithium battery.  The GS026 Wind Speed Sensor pivots on its steel mounting bracket, useful in applications where the structure it is mounted on moves up and down, such as with cranes or other lifting equipment. This keeps the wind cups perpendicular to the wind, the ideal angle to accurately measure the wind speed.

Wind Pro cloud-based web hub supports unlimited data storage of 24/7 wind conditions and auto report generation. Multiple users can acquire synchronized live wind data from individual smart device at the same time regardless where they are through this smart system.
By using Scarlet Wind Pro , users are no more restricted to monitor wind on site in person but can freely observe wind either from PC, laptops, smartphones or tablets in remote distance. It helps you to deliver the best operation strategy for your project. Scarlet Wind Pro is the optimal savior to users who wants to manage worksite smartly, reduce costly accidents and risks in team.

 The i4000 wireless system boasts a dipole aerial for the display/controller for increased signal strength and range, 3.5” color screen, constant battery monitoring of all wireless sensors adjustable limits and even the possibility to combine wireless and wired sensors. The i4000 wireless is a fully versatile system which can be supplemented with new sensors as the system grows with your requirements.

With Data logging option to capture the data at your required set points.
